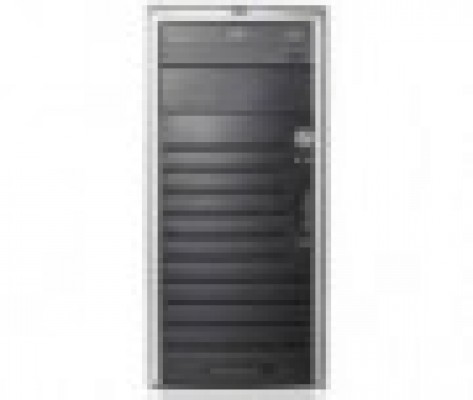

HP Proliant ML110 G5 (444810-371)

Series HP Proliant ML110 G5 P/N 444810-371 Form Factor Micro ATX Tower (4U) Processor Dual-Core Intel® Xeon® processor 3065 (2.33 GHz, 1333 FSB, 65W) Cache Memory 4MB Level 2 cache System bus 1333 MHz Front Side Bus Processor upgrade Upgradeable to 1 processors Chipset Intel® 3200 Memory Standard 512 MB Type PC2-6400 ECC (DDR2-800Mhz) Maximum 8 GB (4 slots) Storage Controller Integrated 6 ports SATA controller with embedded RAID (4 ports available for Hard Disks) HP SC40Ge Host Bus Adapter with RAID 0, 1 support Embedded RAID setup instructions are located in the User Guide. CTO RAID set-up is not available. HP ProLiant ML100 Series Server User Storage Hard Drives 160GB Non-Hot Plug SATA CD-ROM HP Half-Height SATA DVD-ROM Optical Drive Maximum Internal Storage Non-Hot Plug SATA 3.0TB (4 x 750GB) Not-Hot plug SAS 1.8TB (4 x 450GB) Network Controller Embedded NC105i PCI Express Gigabit Ethernet Server Adapter Expansion Slots Technology Bus Width*** Connector Width Notes PCI 32-bit N/A 133MHz/3.3V PCIe X1 X8 PCIe X1 X8 PCIe X8 X8 Interfaces Parallel 0 Serial 1 Pointing Device (Mouse, PS2) 1 Graphics 1 Keyboard (PS2) 1 USB 8 total (4 rear, 2 front panel, 2 internal (one for USB Tape connectivity)) Network RJ-45 (Ethernet) 1 (10/100/1000 Gbits/s) Management HP ProLiant 100 G5 Lights-Out 100c Remote Management port (Optional) Graphics 32MB shared supporting 1600 x 1200 x 16M resolution Remote Management HP ProLiant ML110 G5 Easy Set-up CD Standard Lights Out 100 IPMI 2.0 reporting Optional HP ProLiant G5 Lights Out 100c Remote Management Card Standard HP ProLiant ML110 G5 Easy Set-Up CD Power Supply 365 Watts OS Support Microsoft Windows Server 2003 Web edition Microsoft Windows Server 2003 Windows Server 2003 R2 Microsoft Windows Server 2008 Red Hat Enterprise Linux SUSE Linux Enterprise Server Netware FDD Option Monitor Option Warranty 3 years
