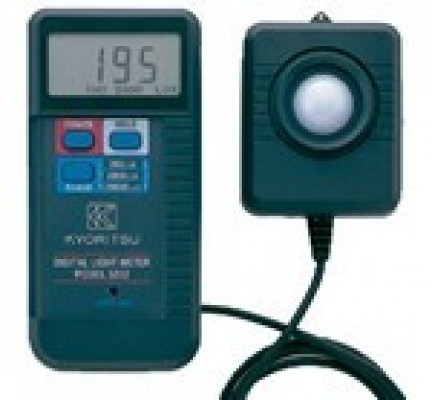

Kyoritsu 5202 - Thiết bị đo cường độ ánh sáng 5202
Bảo hành 12 tháng
| Ranges | 0.1~19990Lux | |
| Accuracy (23ºC±5ºC) |
Lux | Accuracy |
| 200 | |±(4% rdg+5 dgt) | |
| 2000 | |±(4% rdg+5 dgt) | |
| 20000 | |±(5% rdg+4 dgt) | |
| Current Consumption | 2mA approx | |
| Response Time | 2.5times / sec. | |
| Operating Temperature Range |
0~50ºC Below 80% RH | |
| Storage Temperature Range | -10ºC~60ºC | |
| Angular Incident Light Characteristics |
30º Less than ±3% 60º Less than ±10% 80º Less than ±30% |
|
| Spectral Response Characteristics |
JIS C1609 CLASS A | |
| Power Source | 6F22 (9V) × 1 | |
| Dimensions | Meter:148(L) × 71(W) × 36(H)mm Light Receiving Sensor:85(L)× 67(W) × 32(H)mm |
|
| Weight | 270g | |
| Accessories | Carrying Case 6F22 (9V) Photocell Cover Instruction Manual |
|
