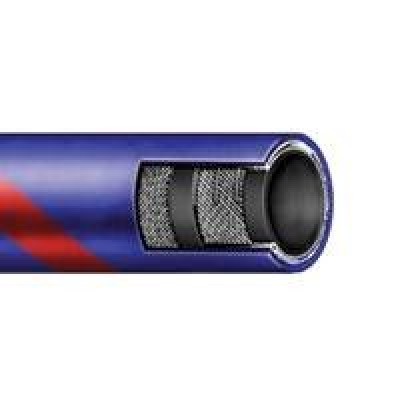

Ống xăng dầu Plicord Arctic Flexwing

Ống xăng dầu Plicord Arctic Flexwing

Công ty CP đầu tư Invesco Việt Nam

Tổng lượt truy cập: 140 - Cập nhật: 13/09/2018 10:46:18
Hãng sản xuất GoodYear USA
company name

Công ty CP đầu tư Invesco Việt Nam Công ty cổ phần

Xem thông tin công ty
Thông tin chi tiết
APPLICATION:

Plicord® Arctic Flexwing® is for use in low-temperature operations for transferring gasoline, oil, and other petroleum products.

CONSTRUCTION:

TUBE: Ultra-low temperature oil resistant synthetic rubber RMA Class A (High Oil Resistance)

COVER: Blue ultra-low temperature synthetic rubber RMA Class A (High Oil Resistance) with red spiral stripe. Smooth cover, wrapped finish

REINFORCEMENT: Spiral-plied synthetic fabric with wire helix

TEMPERATURE: -65°F to 180°F (-54°C to 82°C)

PACKAGING: 100' lengths, coiled and polywrapped

BRANDING(SPIRAL): Example: Goodyear® Arctic Flexwing® 150 psi WP

COUPLINGS: Use Goodyear Engineered Products Insta-Lock™ Cam & Groove Fittings with this product. See the Industrial Hose Products catalog for available Insta-Lock products.

NON-STOCK/SIZES: For special production run minimum requirements, contact customer service.

ORDER CODES: 543-650

NOM. IDNOM. ODMAX. WPBEND RADIUSVACUUM HGWEIGHT
in.mm.in.mm.psiMpain.mm.in.mm.lb./ft.kg./m.
1 1/431.81.7343.91501.03380297370.660.98
1 1/238.11.9850.31501.034102297370.821.22
250.82.5063.51501.035127297371.071.59
2 1/263.53.0978.51501.036152297371.642.44
376.23.5890.91501.037178297371.922.86
4101.64.70119.41501.0310254297372.884.29
6152.46.84173.91501.0316406.4297375.558.26
