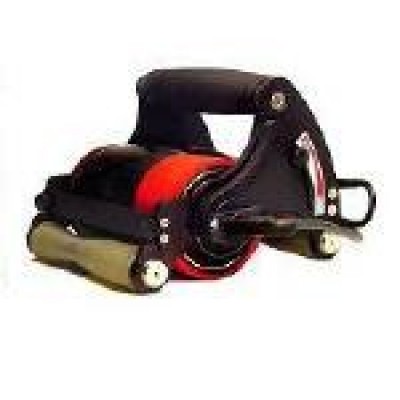

Đầu dò siêu âm mảng điều pha kiểu bánh xe AWP, CWP v RWP

Đầu dò siêu âm mảng điều pha kiểu bánh xe

Model: AWP, CWP & RWP

Nhà sản xuất: Sonatest/UK; Xuất xứ: UK

Sử dụng với nhiều loại thiết bị siêu âm mảng điều pha Phased Array như: VEO 16:64; VEO 16:128; Prisma Series; Harfang X-32; RapidScan 2, RapidScan 3D, Olympus OmniScan MX, OmniScan MX2, OmniScan SX, TomoScan, Zetec DynaArray, M2M, AGR HandyScan, FocusScan bằng cổng cắm kết nối phù hợp.

For use with AGR Handyscan Phased Array system
(High density D-type connector for probe, 15 way D-type connector for encoder)
AWP-02-64-08-05-AGR
2MHz 64el (0.8mm pitch) Array Wheel Probe with D connectors for Handyscan, 5m Cable
AWP-05-64-08-05-AGR
5MHz 64el (0.8mm pitch) Array Wheel Probe with D connectors for Handyscan, 5m Cable
AWP-10-64-08-05-AGR
10 MHz 64el (0.8mm pitch) Array Wheel Probe with D connectors for Handyscan, 5m Cable
CWP-05-64-08-05-AGR
5MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with D connectors for Handyscan, 5m Cable
CWP-10-64-08-05-AGR
10 MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with D connectors for Handyscan, 5m Cable

For use with Sonatest veo
(IPEX array connector, Lemo encoder connectors)
AWP-02-64-08-05-VEO
2MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Veo, 5m Cable
AWP-05-64-08-05-VEO
5MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Veo, 5m Cable
AWP-10-64-08-05-VEO
10 MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Veo, 5m Cable
CWP-05-64-08-05-VEO
5MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with IPEX connector for Veo, 5m Cable
CWP-10-64-08-05-VEO
10 MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with IPEX connector for Veo, 5m Cable

Sử dụng với thiết bị Omniscan MX, MX2 và SX của Olympus NDT / RD Tech
(Kết nối kiểu IPEX, High density D-type encoder connectors)
AWP-02-64-08-05- OMNI
2MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Omniscan, 5m Cable
AWP-05-64-08-05- OMNI
5MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Omniscan, 5m Cable
AWP-10-64-08-05- OMNI
10 MHz 64el (0.8mm pitch) Array Wheel Probe with IPEX connector for Omniscan, 5m Cable
CWP-05-64-08-05- OMNI
5MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with IPEX connector for Omniscan, 5m Cable
CWP-10-64-08-05- OMNI
10 MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with IPEX connector for Omniscan, 5m Cable

For use with Harfang X.32 , M2M, Olympus Tomoscan, Zetec Dynaray etc
(With Hypertronics array connector, Note that encoder connectors may vary, adapters available)
AWP-02-64-08-05-HP
2MHz 64el (0.8mm pitch) Array Wheel Probe with Hypertronics connector ,5m Cable
AWP-05-64-08-05-HP
5MHz 64el (0.8mm pitch) Array Wheel Probe with Hypertronics connector ,5m Cable
AWP-10-64-08-05-HP
10 MHz 64el (0.8mm pitch) Array Wheel Probe with Hypertronics connector, 5m Cable
CWP-05-64-08-05-HP
5MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with Hypertronics connector ,5m Cable
CWP-10-64-08-05-HP
10 MHz 64el (0.8mm pitch) ‘Corrosion’ Array Wheel Probe with Hypertronics connector ,5m Cable

ADAPTERS:
RS-CONV-AGR
Adaptor Kit RS to AGR (High Density D-type Connector)
RS-CONV-HP
Adaptor Kit RS to Hypertronics
RS-CONV-OMNI
Adaptor kit RS to OmniScan
RS-CONV-VEO
Adaptor kit RS to Sonatest-VEO
