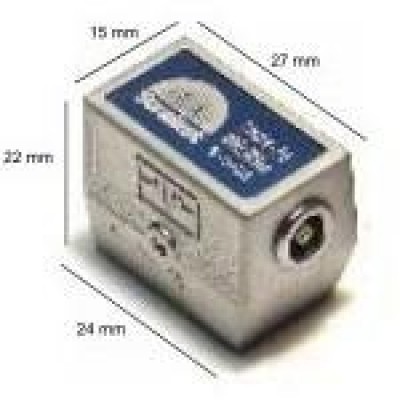

Đầu dò góc siêu âm Sirius Series

Đầu dò góc siêu âm Sirius Series

Nhà sản xuất: Sonatest / Anh

Đầu dò góc siêu âm có thiết kế với kiểu dáng thông dụng, bền và tiện dụng khi sử dụng ngoài công trường.

Vật liệu: PZT

Tần số: 2 hoặc 4 MHz

Góc quét: 45, 60 hoặc 70 độ

Kích thước đầu dò: Nhỏ, vừa và lớn

Kích thước biến tử loại nhỏ: 8x9 mm

Kích thước biến tử loại vừa: 14x14 mm

Kích thước biến tử loại lớn: 20x22 mm

Đầu dò thẳng với kích thước đường kính 10 mm và 24 mm

Đầu kết nối: Lemo 00 và Lemo 1

Đạt theo chuẩn EN12668-2 và cho phép ghi nhận đường cong AVG

Đầu dò thẳng

SHM2-10Z; 2MHz 10mm Hard Faced Single Compression Transducers Lemo 00
LHM2-24; 2MHz 24mm Hard Faced Single Compression Transducers Lemo 00
SHM4-10Z; 4MHz 10mm Hard Faced Single Compression Transducers Lemo 00
LHM4-24; 4MHz 24mm Hard Faced Single Compression Transducers Lemo 00
LMM1-24; 1MHz, 24mm Protective Membrane Single Compression Transducers Lemo 00
SMM2-10Z; 2MHz 10mm Protective Membrane Single Compression Transducers Lemo 00
LMM2-24; 2MHz 24mm Protective Membrane Single Compression Transducers Lemo 1
SMM4-10Z; 4MHz 10mm Protective Membrane Single Compression Transducers Lemo 00
LMM4-24; 4MHz 24mm Protective Membrane Single Compression Transducers Lemo 1
THM2-10Z; 2MHz 10mm Dual Element Compression Transducers Lemo 00
THM2-24; 2MHz 24mm Dual Element Compression Transducers Lemo 00
THM4-10Z; 4MHz 10mm Dual Element Compression Transducers Lemo 00
THM4-24; 4MHz 24mm Dual Element Compression Transducers Lemo 00

Sirius Range Angle Transducers
SMA2-45ZR; 2MHz, 45 degree Small Angle Transducer, Lemo 00, 8x9mm element
SMA2-60ZR; 2MHz, 60 degree, Small Angle Transducer, Lemo 00, 8x9mm element
SMA2-70ZR; 2MHz, 70 degree, Small Angle Transducer, Lemo 00, 8x9mm element
SMA4-45ZR; 4MHz, 45 degree, Small Angle Transducer, Lemo 00, 8x9mm element
SMA4-60ZR; 4MHz, 60 degree, Small Angle Transducer, Lemo 00, 8x9mm element
SMA4-70ZR; 4MHz, 70 degree, Small Angle Transducer, Lemo 00, 8x9mm element

MMA2-45ZR; 2MHz, 45 degree Medium Angle Transducer, Lemo 00, 14x14mm element
MMA2-60ZR; 2MHz, 60 degree, Medium Angle Transducer, Lemo 00, 14x14mm element
MMA2-70ZR; 2MHz, 70 degree, Medium Angle Transducer, Lemo 00, 14x14mm element
MMA4-45ZR; 4MHz, 45 degree, Medium Angle Transducer, Lemo 00, 14x14mm element
MMA4-60ZR; 4MHz, 60 degree, Medium Angle Transducer, Lemo 00, 14x14mm element
MMA4-70ZR; 4MHz, 70 degree, Medium Angle Transducer, Lemo 00, 14x14mm element

LMA2-45; 2MHz, 45 degree Large Angle Transducer, Lemo 00, 20x22mm element
LMA2-60; 2MHz, 60 degree, Large Angle Transducer, Lemo 00, 20x22mm element
LMA2-70; 2MHz, 70 degree, Large Angle Transducer, Lemo 00, 20x22mm element
LMA4-45; 4MHz, 45 degree, Large Angle Transducer, Lemo 00, 20x22mm element
LMA4-60; 4MHz, 60 degree, Large Angle Transducer, Lemo 00, 20x22mm element
LMA4-70; 4MHz, 70 degree, Large Angle Transducer, Lemo 00, 20x22mm element

Sirius Transducer accessories
195182; Yellow Box – holds 3x SMA’s + 1x small compression
195183; Yellow Box – holds 1-2 small size transducers
195184; Black/Grey Box – holds 1 medium/large transducer
195104; A5 kit box – holds 3xSMA + 1 x small compression + cable + certs
SMA-SK; Replacement Shoe Kit suitable for SMA transducers
MMA-SK; Replacement Shoe Kit suitable for MMA transducers
LMA-SK; Replacement Shoe Kit suitable for LMA transducers
