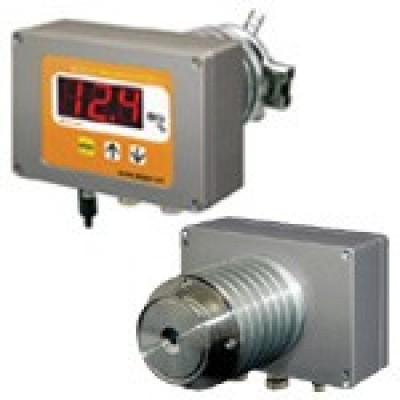

| Model | CM-780N | Cat.No. | 3561 |
| Measurement Scale | Brix ( Automatic Temperature Compensation according to the sample liquid ) | Measurement Range | Brix 0.0 to 78.0% |
| Minimum Indication | Brix 0.1% | Measurement Accuracy | Brix ±0.2% |
| Measurement Temperature | 5 to 100°C ( Automatic Temperature Compensation ) | Ambient Temperature | 5 to 40°C |
| Output | (1) Recorder output : DC 4 to 20mA (2) RS-232C output |
Materials in contact with the Solution | Prism : Sapphire Prism stage : SUS316 |
| Power Supply | DC24V | Power Consumption | 3VA |
International Protection Class |
IP64 Dust-tight and Protected against splashing water. |
Dimensions & Weight | 16×17×11cm, 1.8kg (Main Unit only) |
| Optional | * Calibration Certificate : Contact an ATAGO representative for details. As for the other optional see below. |
||
| Accessory | Power input cable ( 1m ) | ||
